INDININI 18m Aluminium Sailboat

INDININI is an 18m Aluminium Sailboat designed by Marc Lombard. Built in Turkey with welders from the Yildiz Yard. Electric motor & 17tons.

Modern, lightweight, performance hull

GENERAL SPECIFICATIONS

Freshwater capacity	2x@300 l
Fuel tanks	1x@600 l (holds 38kw LifePo4 batteries)
Blackwater & Greywater tanks	1x@55l 1x@55l
Sail area upwind	170 m2
Mainsail area	84 m2
Genoa area	86 m2
Staysail area	50 m2
Gennaker area	135 m2
Spinnaker area	220 m2
Engine (Electric)	68kW NetGain Hyper9 Electric

Architect	Marc Lombard
Design Category	A – 10 persons
Materials	Aluminium 5083 H11
Hull length LH	18.0 m (60′)
Length on waterline LWL	17.5 m (57’)
Maximum beam	5.15 m(16’)
Fixed keel draught (Std)	2.80 m(9’2”)
Air draught	26.50 m (86’11”)
Displacement (light/maximum load)	15,800 kg / 18,000 kg
Fixed ballast	4,100 kg

Comfort on deck for your personal safety at sea

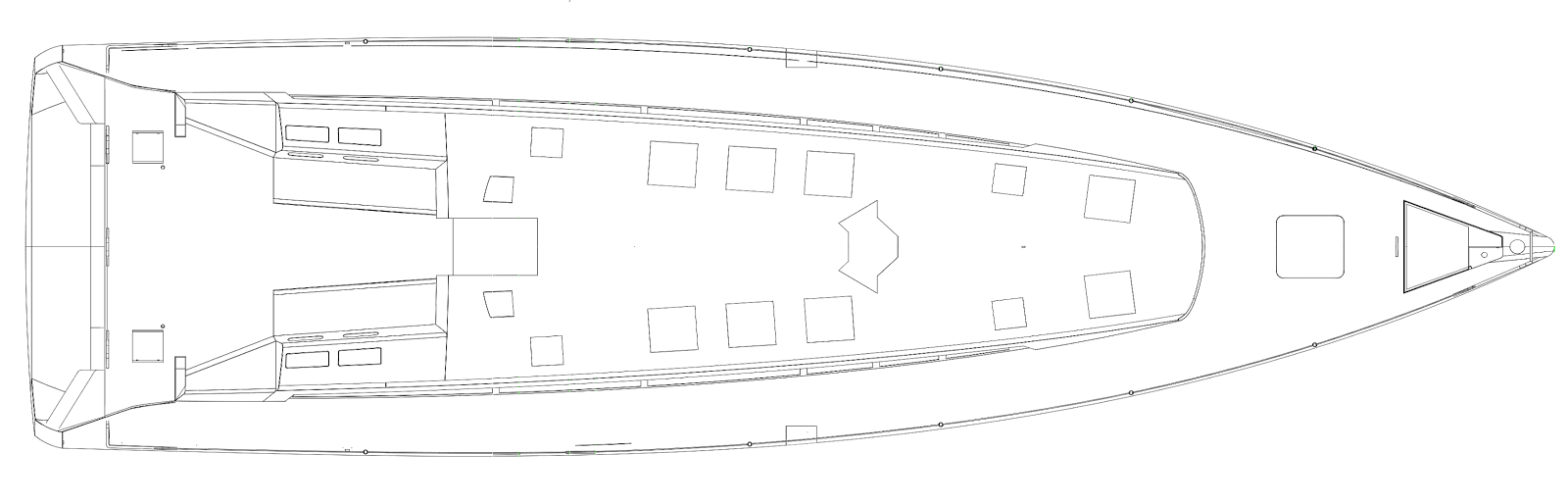

DECK

• Polyurethane nonskid deck grip paint
• Bowsprit with double bow rollers
• Aluminium toe rails
• Self-bailing chain locker
• Lofrans vertical windlass 1700W chain Ø10mm
• Stainless steel anchor pulpit, LED bi-colour lights
• Stainless steel aft side pulpits
• Sheathed double lifelines on s/s stanchions
• 2 bow mooring cleats 270 mm
• 2 aft mooring cleats 270 mm
• 2 midship spring cleats 270mm
• 8 hatches (500mmx500mm)
• 4 hatches (330mmx330mm)
• 2 aft panoramic hatches
• Harness clip-in attachment points

• 1 sail locker hatch (700mmx700mm)
• 14 fixed hull portholes (600mmx150mm)
• 2 Plexiglas coach roof coaming
• 4 opening portholes in the cockpit (350mmx170mm)
• 1 mainsail track with traveller car adjustment
• 2 genoa / staysail sheet tracks with adjustable traveller cars
• Locking winch handles
• 2 x Harken 70 genoa sheet winches
• 2 x Harken 70 staysail sheet winches
• 2 x Harken 50 mainsail sheet winches and halyards on coachroof
• 2 sheave boxes leading halyards and reefs back to the cockpit
• 2 x 6 cam clutches on roof for halyards and reefs
• Grab rails on coach roof
• Water filler, black water removal on deck
• Hot and cold water taps and showers

RIGGING

24m Selden anodized aluminium mast deck mount 2 levels of swept back spreaders LED mooring and masthead navigation lamps, deck floodlight Aluminium boom fitted with outhaul Genoa furling system Mast step with 9 blocks 1 rigid boom down-haul with tackle S/s standing rigging:1 forestay 1 inner forestay with adjustable backstays 2 upper shrouds 2 inter shrouds 2 aft lower shrouds 2 check stays  Running rigging1 mainsail halyard 1 genoa halyard 1 forestay halyard 1 boom topping lift genoa sheets + forestay sheets + mainsail sheets

Spacious, open living area filled with light, comfort and airflow

GALLEY

• Open plan layout
• Large bench top (1600×600)
• Sink bowl with hot/cold water pressurized mixer tap
• 2 x Water pumps
• Gimballed induction stove with oven
• Top opening 80l freezer
• Top opening 190l refrigerator
• Storage cupboard under sink
• Top storage cupboards
• 4 drawers
• Open storage behind the bench top and stove
• Ventilation through deck hatches (500×500)
• LED lights
• 2 x 220v sockets

SEATING AREA

• Comfortable seating
• Flexible table can be lowered for added lounge/sleeping area
• Large storage space under the seating
• Durable upholstered foam cushions
• Shelf behind seat back
• Lining on ceiling and on hull sides
• Fixed hull portholes for viewing
• Deck hatches above the table
• LED lights

CABINS

AFT PORT CABIN

• Double berth 140x200cm
• 18cm thick foam/memory foam mattress
• Drawers on bed front
• Hanging locker
• Bench seating below hanging locker
• Curtain door separating the cabin from the saloon
• Ventilation through cockpit and skirt port lights
• LED lights
• 1 socket at 220V, USB sockets

FORE CABIN (OWNER)

• Central double berth 160x200cm
• 18cm thick foam/memory foam mattress
• Storage lockers and bed drawers
• Hanging locker and single seat
• Curtains separating cabin from saloon and retaining hook to maintain open
• Ventilation through opening deck hatch (50×500) with mosquito screen
• 4 fixed hull portholes (600×150)
• LED lights
• 2 sockets at 220V, USB sockets

AFT STARBOARD CABIN

• 2 x Bunk berths 80x200cm
• 14cm thick foam mattress
• Storage lockers under lower berth
• Hanging locker
• Storage locker
• Curtain separating cabin from saloon and retaining hook to maintain open
• Ventilation through cockpit and skirt port lights
• LED lights
• 1 socket at 220V, USB sockets

FWD HEAD AND SHOWER (To be completed)

• Curtain separating fore cabin and galley
• White bulkheads
• Cabinet with storage
• White benchtop, black washbasin
• Mirror
• Electric pump toilet
• Washbasin + hot and cold pressurized spray tap
• Separate shower
• 1 electric shower discharge pump
• Ventilation through opening deck hatch (325×325)
• LED lights

AFT HEAD AND SHOWER

• Locking separating door
• White bulkheads
• Cabinet with storage
• White benchtop, black washbasin
• Mirror
• Electric pump toilet
• Washbasin + hot and cold pressurized spray tap
• Shower
• 1 electric shower discharge pump
• Ventilation through opening deck hatch (325×325)
• LED lights

MECHANICS & ELECTRICITY

Electric motor & Sail drive

• 68kw Netgain Hyper9 electric motor, motor controller, and charger
• 38kwh of LifePo4 batteries for the motor
• 2000 watts of solar panels
• Electric motor regenerative power
• Range for motoring depends on speed
• ZF SD12 Saildrive
• Bruntons eco star variable pitch three blade propeller with sacrificial anode

Misc Electrical

• 20kwh LifePo4 24v house batteries
• Daly 250amp battery management system (BMS) for house batteries
• 5000w Victron Inverter
• 70 amp Victron 24 to 12 DC to DC Converter
• Ventilated engine compartment
• 6 automatic electric bilge pump with switch on control panel
• All electrical devices separated with their own 2 pole breaker

COCKPIT

• Large self-draining cockpit open to the stern
• Comfort angled bench seating
• Non-skid cockpit floor and skirt deck
• 2 helm stations with Ø900 Carbonautica steering wheels
• Stainless emergency tiller for rudders
• Hatch to aft technical area at the back of the cockpit
• 2 skirt lockers hatches
• Harness clip-in attachment points

Miscellaneous

• Schenker Zen30 watermaker
• Ullman Sails. Contender hybrid fabric
• Main, Genoa and Stay sail
• 200m of hardened galvanized anchor chain
• 3 x 45kg anchors
